Int2Fabric Data Pipeline Flow

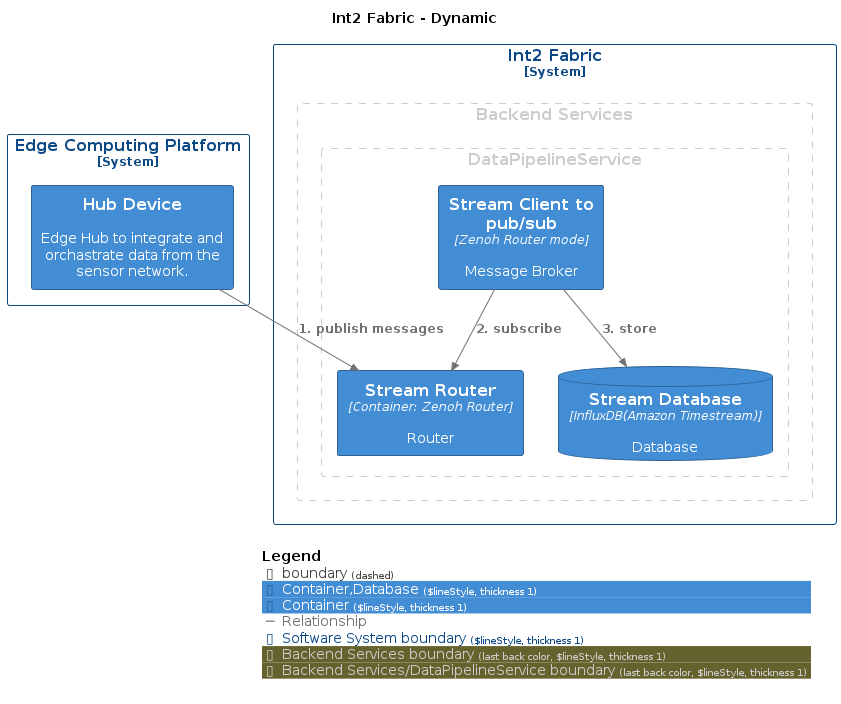

Int2 Fabric - Dynamic Edge Computing Platform [System] Int2 Fabric [System] Backend Services DataPipelineService Hub   Device   Edge   Hub   to   integrate   and orchastrate   data   from   the sensor   network. Stream   Router [Container:   Zenoh   Router]   Router Stream   Database [InfluxDB(Amazon   Timestream)]   Database Stream   Client   to pub/sub [Zenoh   Router   mode]   Message   Broker 1.   publish   messages 2.   subscribe 3.   store Legend   ▯   boundary (dashed)   ▯   Container,Database ($lineStyle, thickness 1)   ▯   Container ($lineStyle, thickness 1)   ─   Relationship   ▯   Software System boundary ($lineStyle, thickness 1)   ▯   Backend Services boundary (last back color, $lineStyle, thickness 1)   ▯   Backend Services/DataPipelineService boundary (last back color, $lineStyle, thickness 1)
Edge <> DataFabric 통신 흐름
